Packaging Machines Manufacturer in Amritsar

Complete packaging machinery from Amritsar, Punjab — corrugation (finger & fingerless), reel-to-sheet cutters, slotters, folder-gluers, flute laminators, mill roll stands, and 3 / 5 / 7 ply plants.

Packaging Machines

Double Profile Corrugation with Finger

View Details
View specifications
Features
  • Two sets of flute rolls with multiple flute-roll configurations
  • Bearing-mounted high-speed construction
  • Reduced floor-space requirement
  • High-temperature grease lubrication
  • Steam or thermic-fluid heating
  • Motorized flute-roll changeover; hydraulic interchange on specified configuration
Technical Specifications
SizeMotor H.P.Steam Requirement kg/hrWeight Approx.Floor Space
42"9.02005.0 MT7' × 16'
52"11.53005.5 MT8.5' × 16'
62"11.53006.0 MT9.5' × 16'
72"14.04006.5 MT10' × 17'
82"16.54007.5 MT11' × 18'
Request Quote

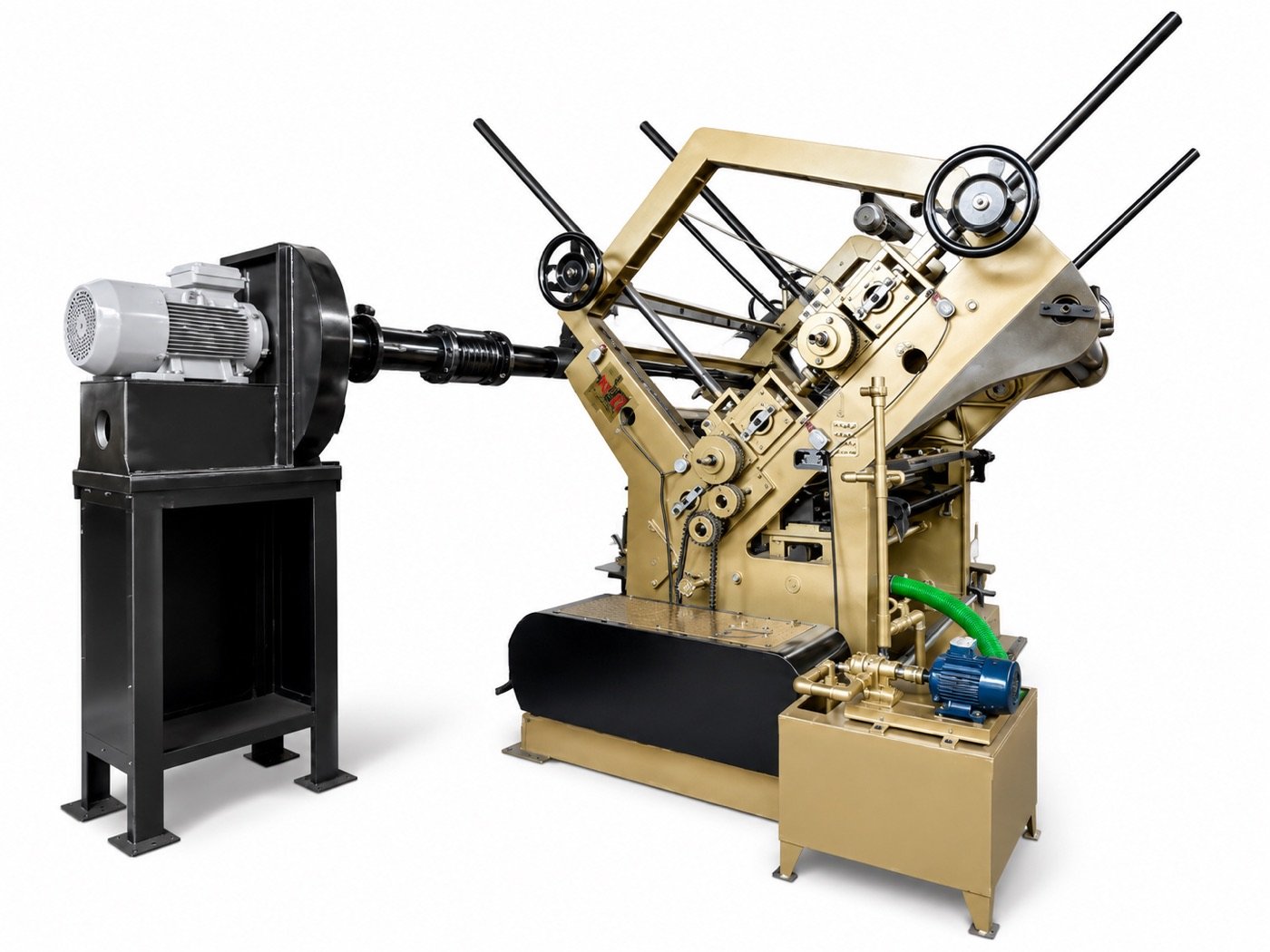

Double Profile Corrugation Fingerless

View specifications
Features
  • Two sets of flute rolls with multiple flute-roll configurations
  • Bearing-mounted high-speed construction
  • Reduced floor-space requirement
  • High-temperature grease lubrication
  • Steam or thermic-fluid heating
  • Motorized flute-roll changeover; hydraulic interchange on specified configuration
Technical Specifications
SizeMotor H.P.Steam Requirement kg/hrWeight Approx.Floor Space
42"9.02005.0 MT7' × 16'
52"11.53005.5 MT8.5' × 16'
62"11.53006.0 MT9.5' × 16'
72"14.04006.5 MT10' × 17'
82"16.54007.5 MT11' × 18'
Request Quote View Details

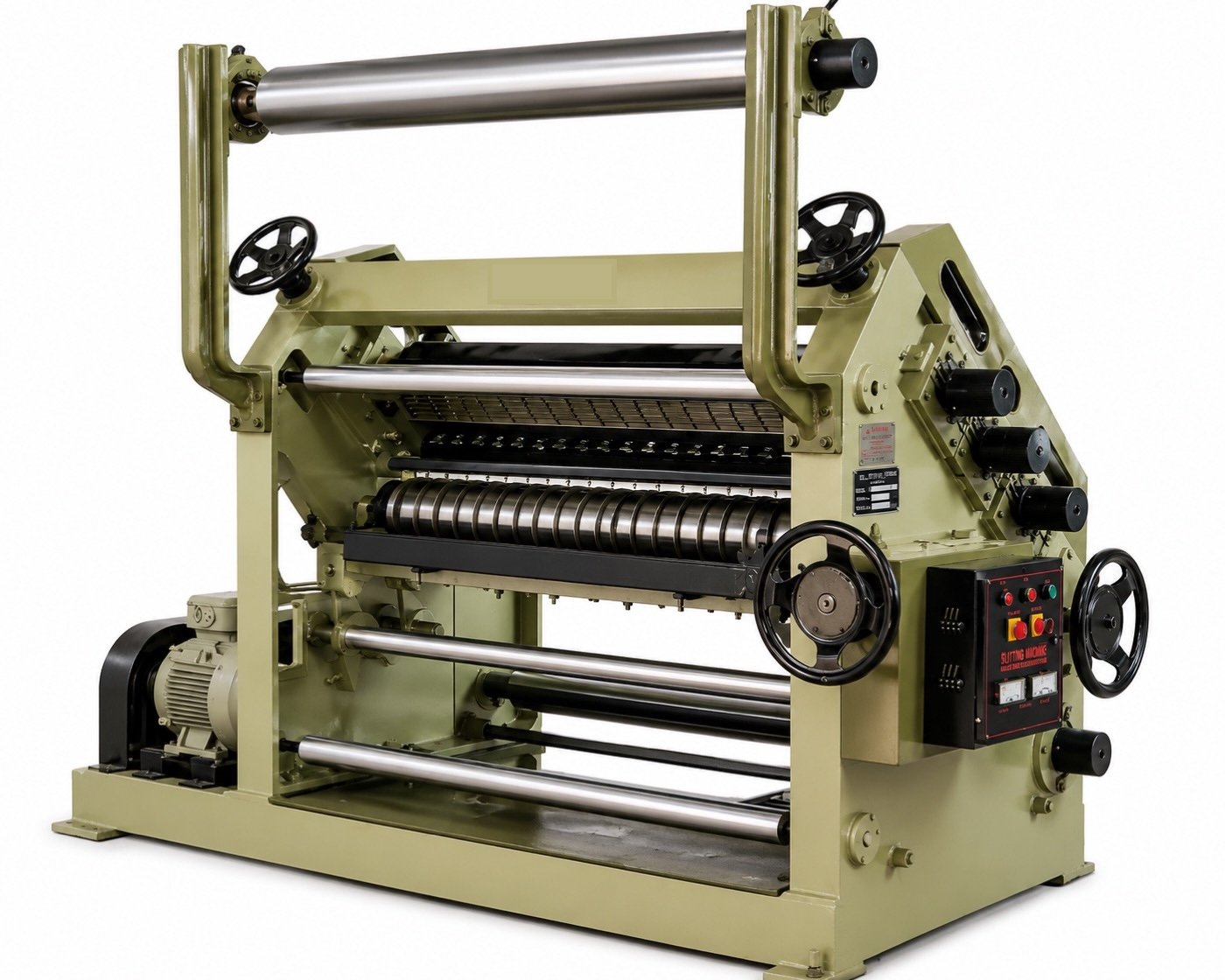

High Speed Corrugation Oblique Type with Finger

View specifications
Features
  • High-speed paper corrugation with precision flute rolls
  • Uniform impression
  • Hydraulic self-loading twin-shaft reel stand with two unwinding shafts
  • Electric heating for board lamination
  • Robust construction, simple operation, easy handling
Technical Specifications
SizeOutputPowerHeating LoadFloor SpaceWeight Approx.
42"120 ft.3 H.P.33 kW7' × 16'4.5 MT
52"120 ft.7 H.P.33 kW8' × 16'5.0 MT
62"120 ft.10 H.P.33 kW9' × 16'5.5 MT
72"120 ft.15 H.P.Steam10' × 16'6.0 MT
Request Quote View Details

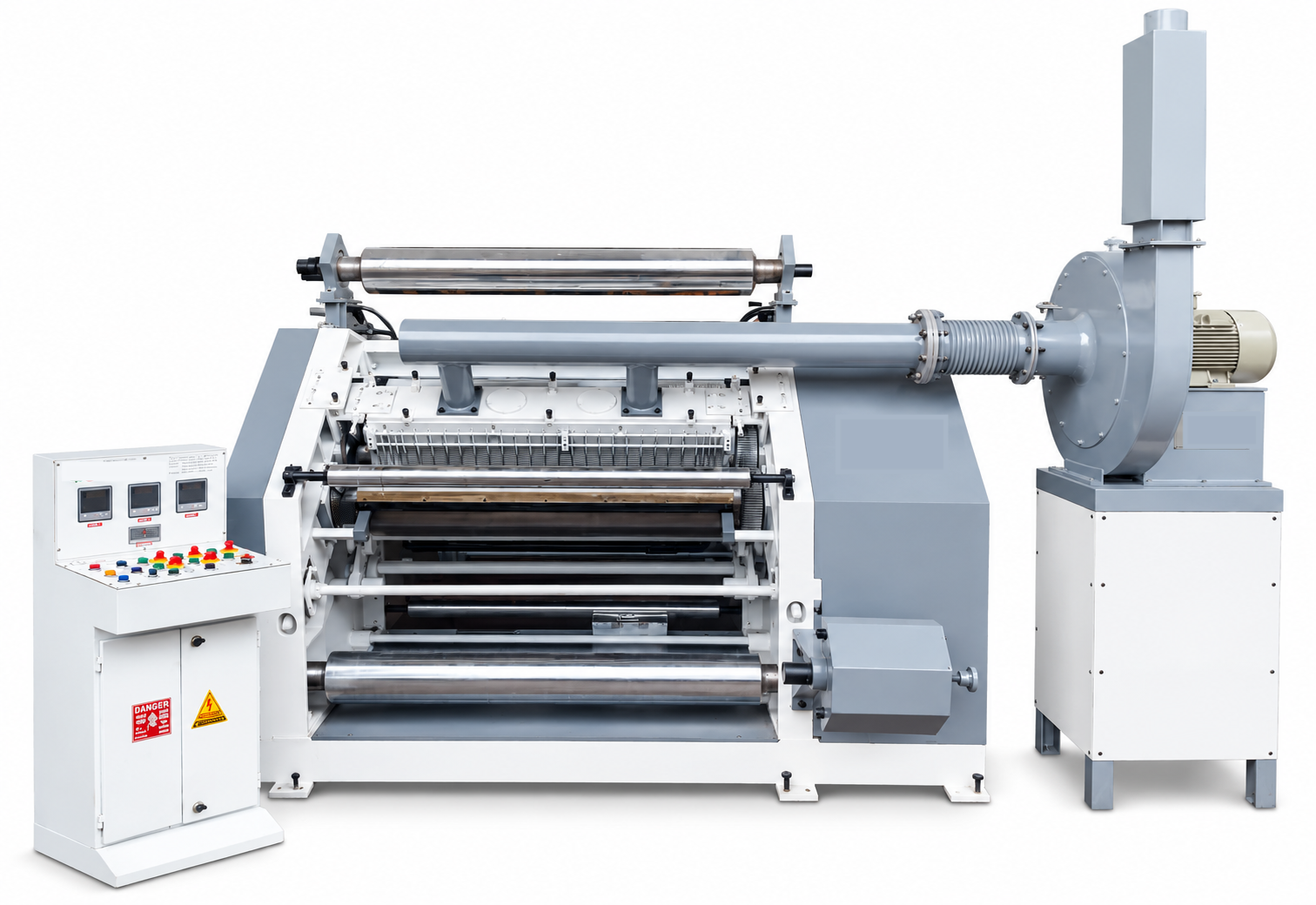

High Speed Corrugation Oblique Type Fingerless

View specifications
Features
  • Designed for single-face corrugated production
  • Fingerless corrugating system with high-speed operation
  • High-temperature grease lubrication — reduced leakage and contamination
  • Integral segments for thermic-fluid or steam heating
  • High-quality flute formation for improved board quality
  • Suitable for high-production applications
Technical Specifications
SizeMotor H.P.Blower H.P.Heating LoadPre-HeaterMaximum Speed
42"77.536 kW6 kW20–30 m/min
46"7.51039 kW6 kW20–30 m/min
52"7.51539 kW6 kW20–30 m/min
62"101542 kW8 kW20–30 m/min
Request Quote View Details

Reel To Sheet Cutting Machine (Gear Model with 23 Nos of Gears)

View Details
View specifications
Features
  • High-speed reel-to-sheet cutting for corrugated board and plain paper
  • Cuts corrugated board without damaging flutes
  • Gear-driven cutting with accurate sheet-length cutting
  • Delivery conveyor and counting meter
  • Suitable for independent or integrated operation
  • Gear Model with 23 Nos of Gears
Technical Specifications
SizeCutting LengthSpeedCutting PrecisionPower
42"8"–110"200–250 m/min±1 mm2 H.P.
52"8"–110"200–250 m/min±1 mm2 H.P.
62"8"–110"200–250 m/min±1 mm3 H.P.
Request Quote

Reel To Sheet Cutting Machine with PLC Automated

View specifications
Features
  • High-speed reel-to-sheet cutting for paper and 2-ply corrugated board
  • PLC-controlled operation with digital display and touchscreen
  • Synchronized operation with overlap delivery and stacking station
  • High-rigidity gearbox and high-precision knife system
  • Low-noise operation with AC servo motor
Technical Specifications
SizeCutting RangeH.P.OutputSquarenessMaximum Pile Height
44"20"/100"570 m/min±0.5 mm500 mm
54"20"/100"770 m/min±0.5 mm500 mm
64"20"/100"770 m/min±0.5 mm500 mm
Request Quote View Details

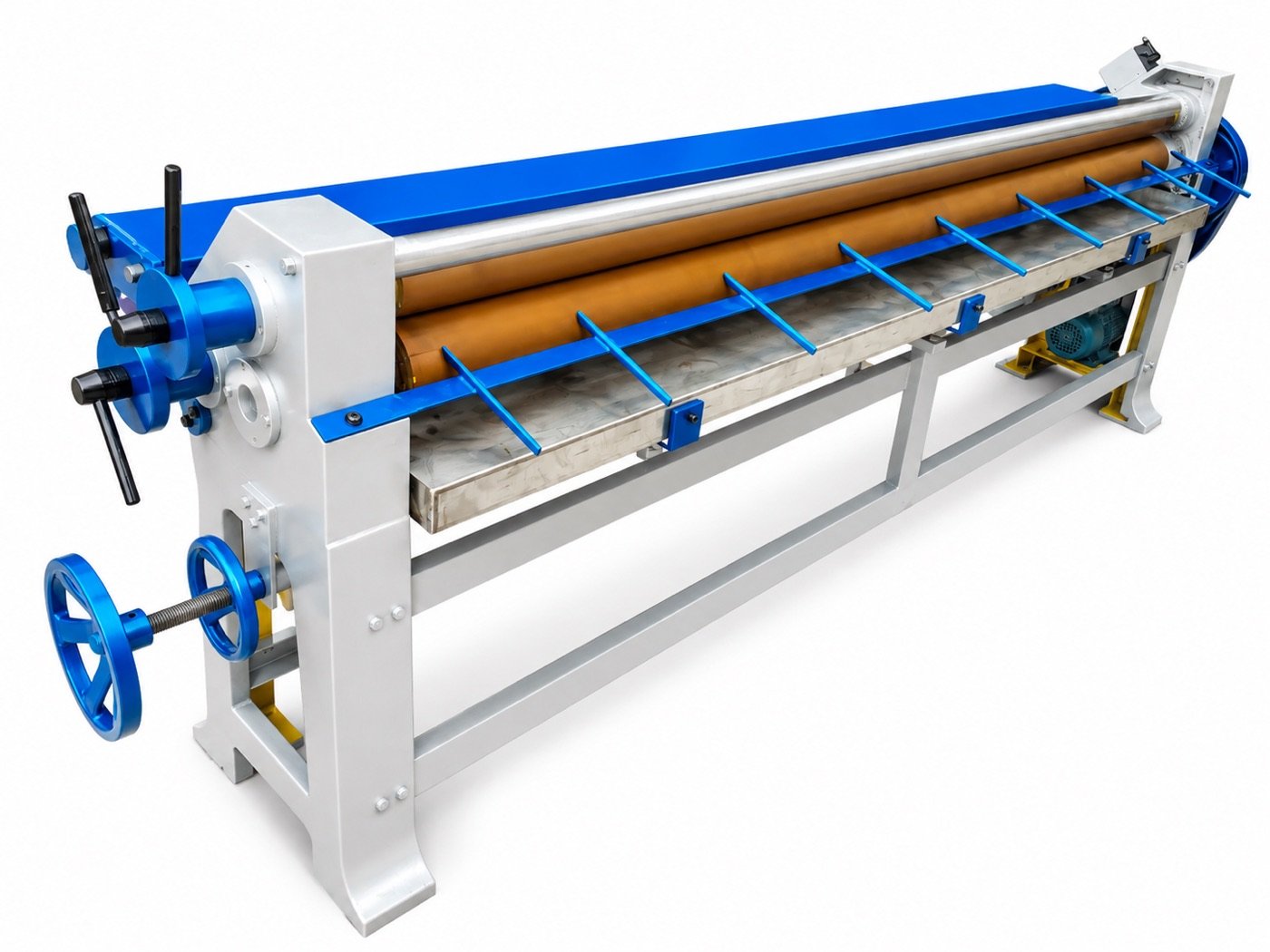

Sheet Pasting Machine

View specifications
Features
  • Suitable for corrugated sheets
  • Strong construction for continuous operation
  • Smooth-finished rolls for uniform pasting
  • Worm-gear gum-tray system
Technical Specifications
SizeSheet FeedMotor
65"15"/60"0.5 H.P.
75"15"/70"0.5 H.P.
85"15"/80"0.5 H.P.
95"15"/80"0.5 H.P.
105"15"/80"1 H.P.
Request Quote View Details

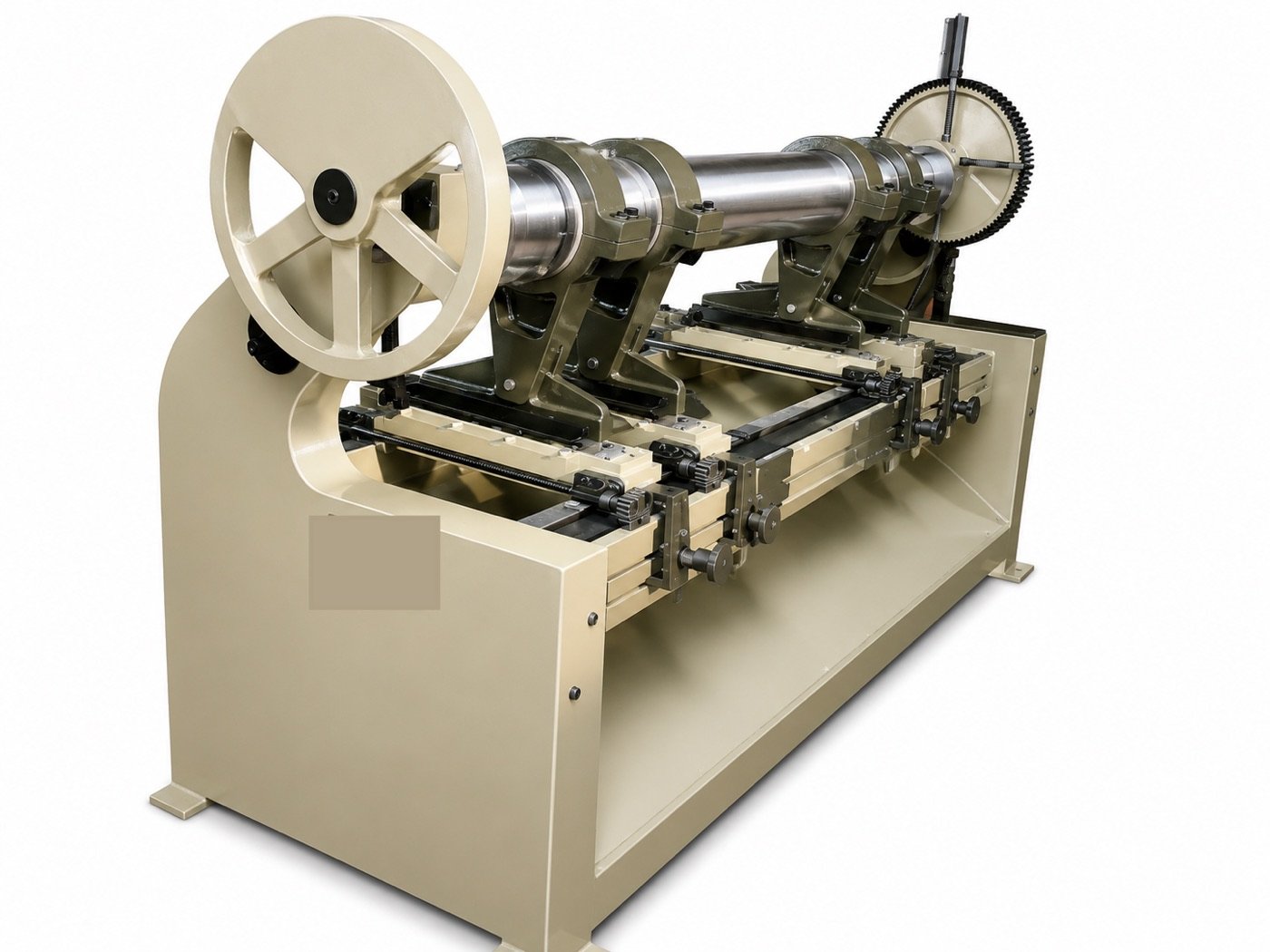

Eccentric Slotter

View specifications
Features
  • Three slotting heads and one corner head
  • Quick and accurate head adjustment
  • Side-cutter adjustment arrangement
Technical Specifications
SizeStrokes/minSlot DepthMinimum DistancePowerFloor Space
75"3018"5"3 H.P.8' × 4'
85"3018"5"3 H.P.9' × 4'
95"3018"7"5 H.P.10' × 4'
105"3018"7"5 H.P.11' × 4'
Request Quote View Details

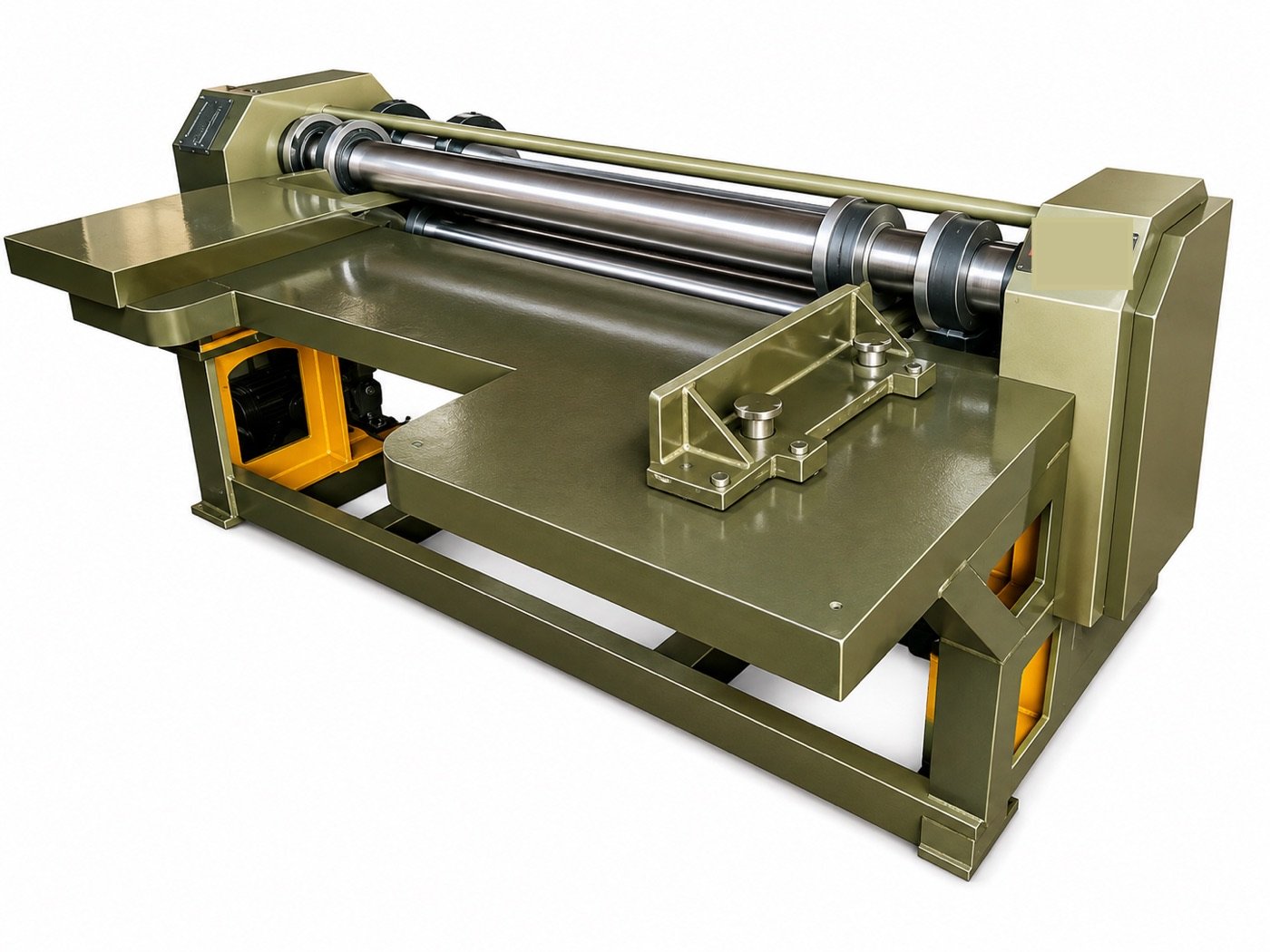

Four Bar Rotary Cutting Machine

View specifications
Features
  • Trimming and creasing with simultaneous cutting and creasing
  • Easy operation with adjustable creasing and cutting heads
  • Side gauges for board feeding
  • Accurate cutting and creasing
Technical Specifications
SizeOutputMinimum Die DistancePowerFloor Space
65"15" × 70"3"2 H.P.7' × 4'
75"15" × 80"3"2 H.P.8' × 4'
85"15" × 80"3"3 H.P.9' × 4'
95"15" × 80"3"3 H.P.10' × 4'
105"15" × 80"3"3 H.P.11' × 4'
Request Quote View Details

Die Punching & Creasing Machine

View Details
View specifications
Features
  • Electromagnetic clutch-brake with instant stop
  • Dwell timing and operator safety device
  • Sheet counter and digital electronic counter
  • Piped oiling system with high-quality bearings and bronze bushes
  • Helical gears; automatic time delay 0–30 sec.
  • Smooth operation with chromium-finished components
  • Worm-gear feed system
Available Sizes

20" × 26" · 22" × 32" · 25" × 37" · 29" × 40" · 33" × 43" · 41" × 53" · 41" × 55" · 42" × 62" · 48" × 68" · 52" × 72"

Request Quote

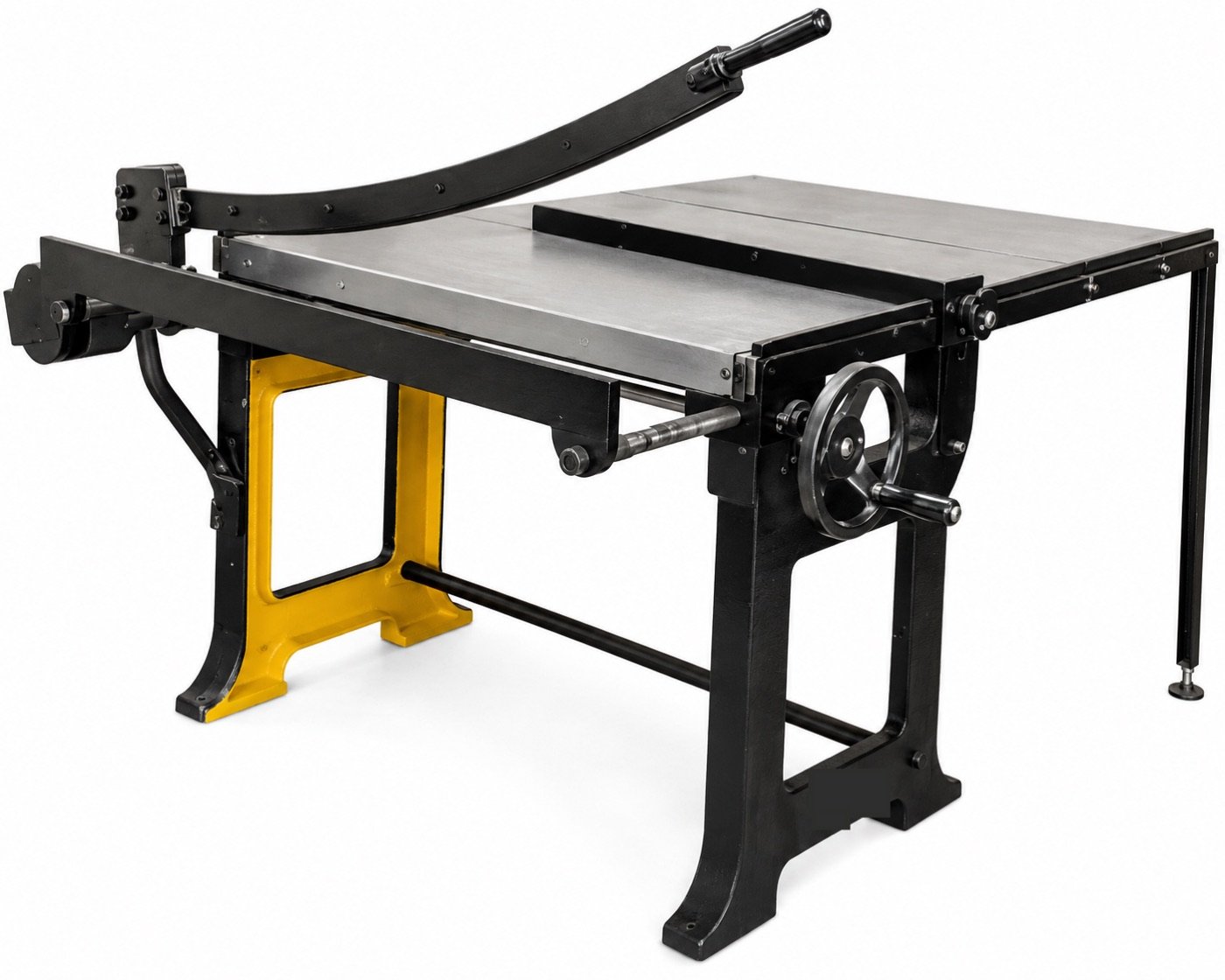

Board Cutter Machine

View specifications
Features
  • Cuts cardboard, corrugated board and paper
  • Balanced cutting knife with free cutting at minimum pressure
  • Gauges for accurate cutting
Available Sizes

42" × 52" · 52" × 62" · 62" × 72" · Larger sizes available

Request Quote View Details

Sheet Pressing Machine

View specifications
Features
  • Strong frame construction with two-screw pressing arrangement
  • Spring-regulated pressure for even application
  • Designed for durable and even boards
Technical Specifications
SizeHeightPressing HeightPowerFloor Space
65" × 75"84"54"2 H.P.6' × 7'
65" × 105"84"54"2 H.P.6' × 9'
Request Quote View Details

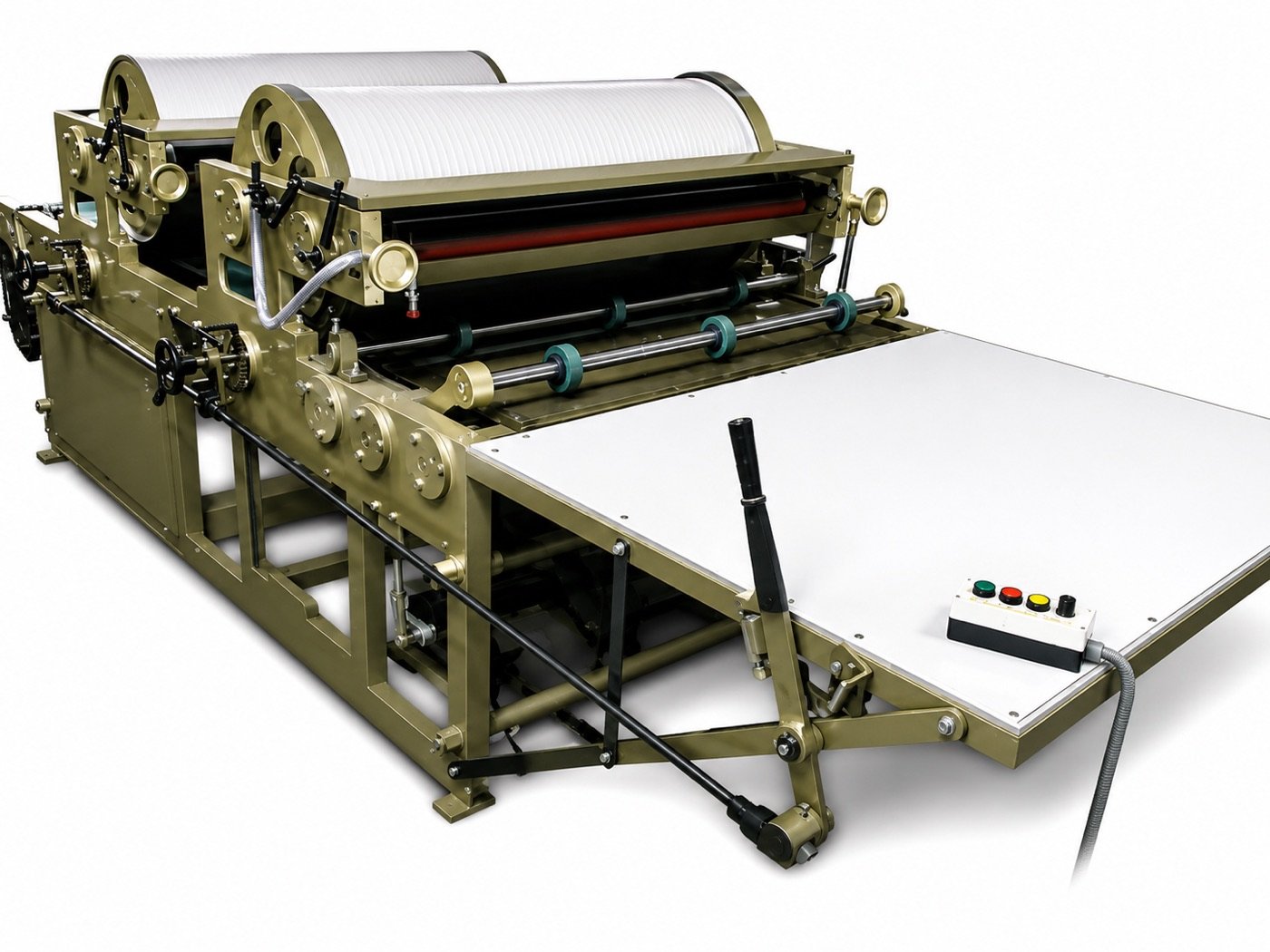

Flexo Board Printing Machine

View specifications
Features
  • Designed for corrugated-box printing
  • Variable-speed electrical drive with conveyor system
Technical Parameters
Size52" × 72"
Motor2 H.P.
Output1000 per hour
Request Quote View Details

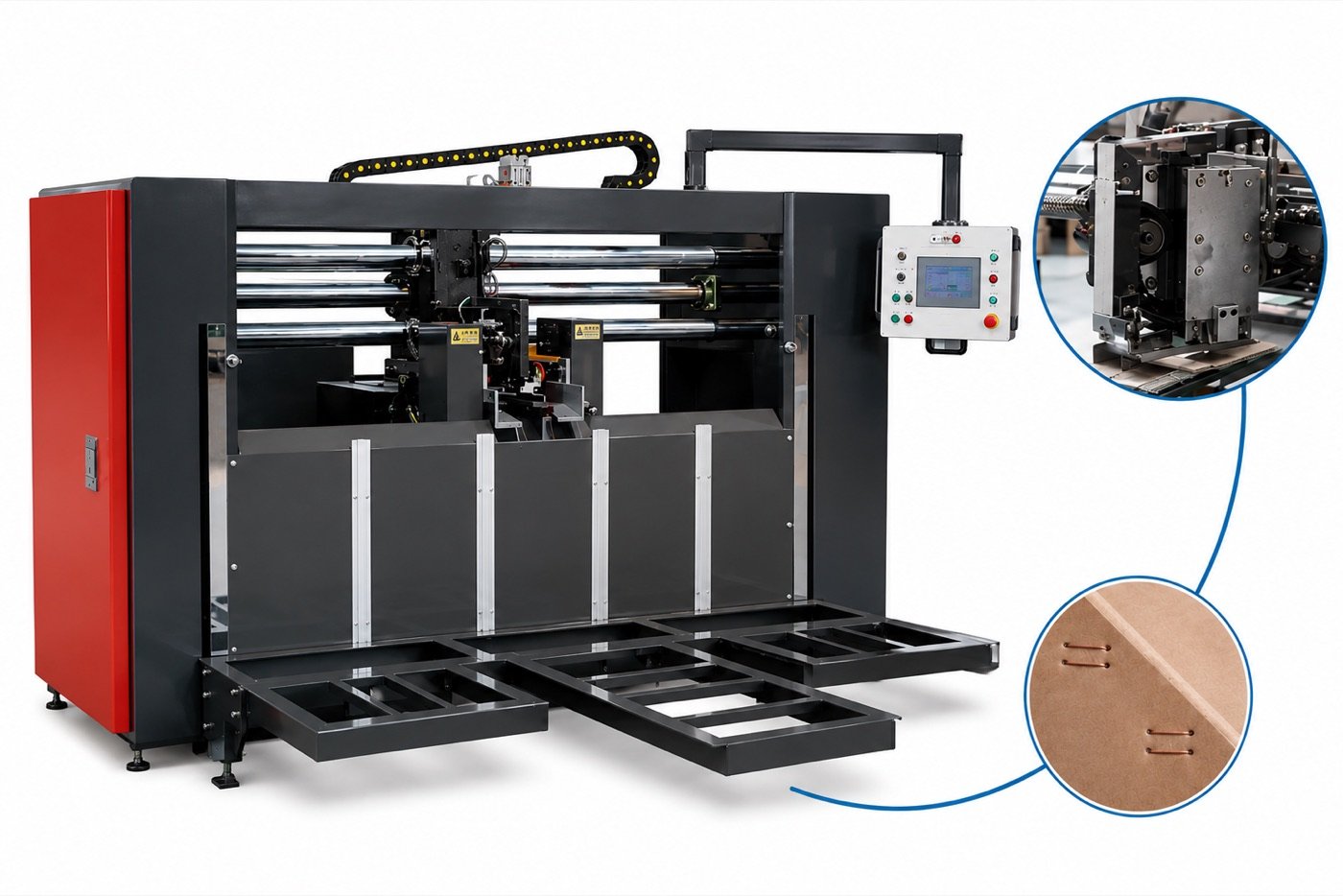

Box Stitching Machine

View specifications
Features
  • Cardboard and corrugated-board stitching
  • Round or flat wire with adjustable stitching head
  • Available arm lengths from 20" to 60"
Technical Specifications
SizeStitches/minPower
20"2500.5 H.P.
30"2500.5 H.P.
36"2500.5 H.P.
42"2500.5 H.P.
48"2500.5 H.P.
52"2501 H.P.
60"2501 H.P.
Request Quote View Details

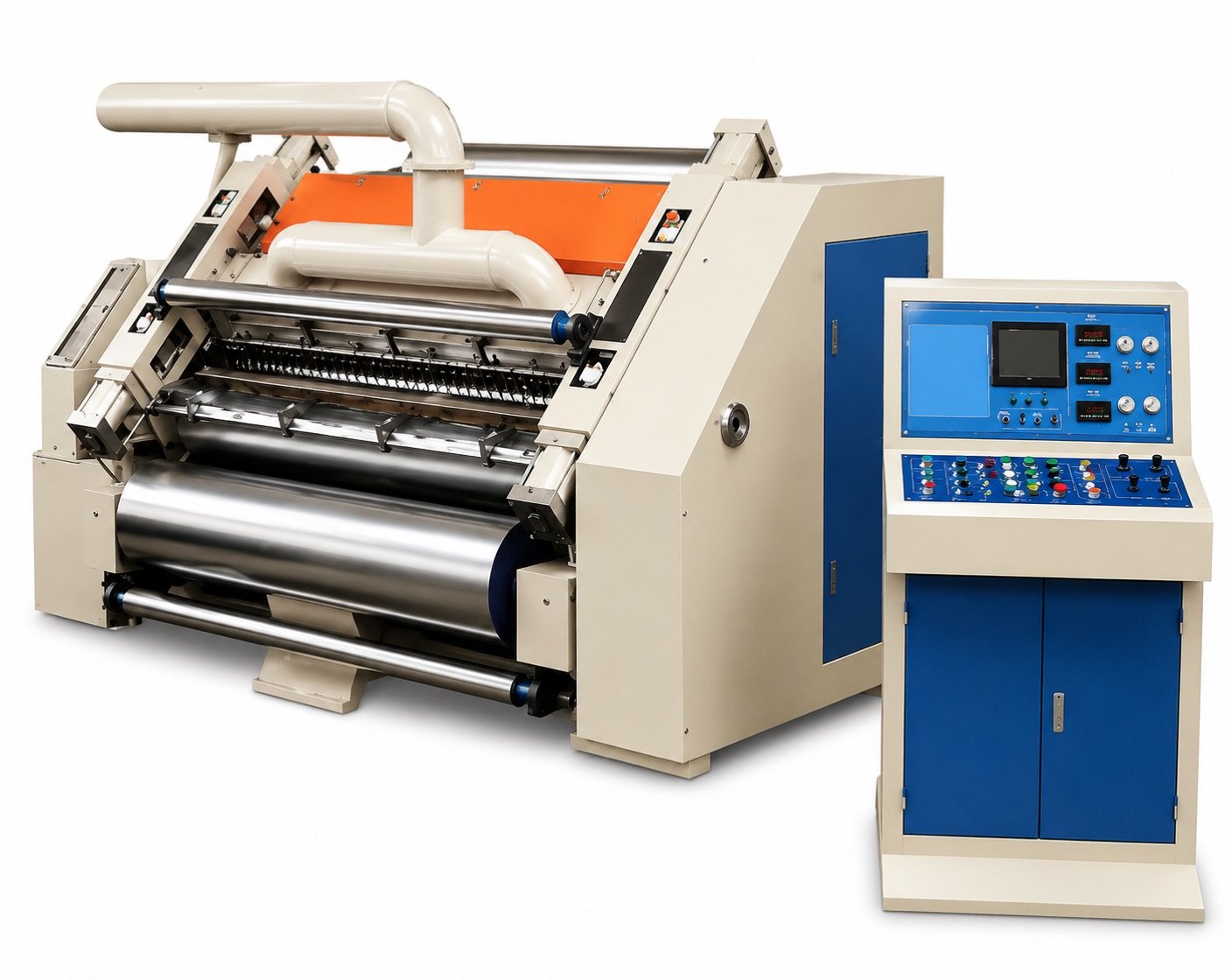

Corrugation Machine Fingerless (Chinese Model)

View specifications
Features
  • Designed speed: 120–200 m/min; width 1400–1800 mm
  • Roll diameters: 280, 320, 360 and 380 mm
  • Separate upper and lower rolls with guideway replacement system
  • Vacuum suction with blast-volume controller
  • Gimbal transmission and individual drive box
  • Special-grease gear lubrication; pneumatic roll lifting/lowering
  • Digital readout; manual glue-application adjustment
Request Quote View Details

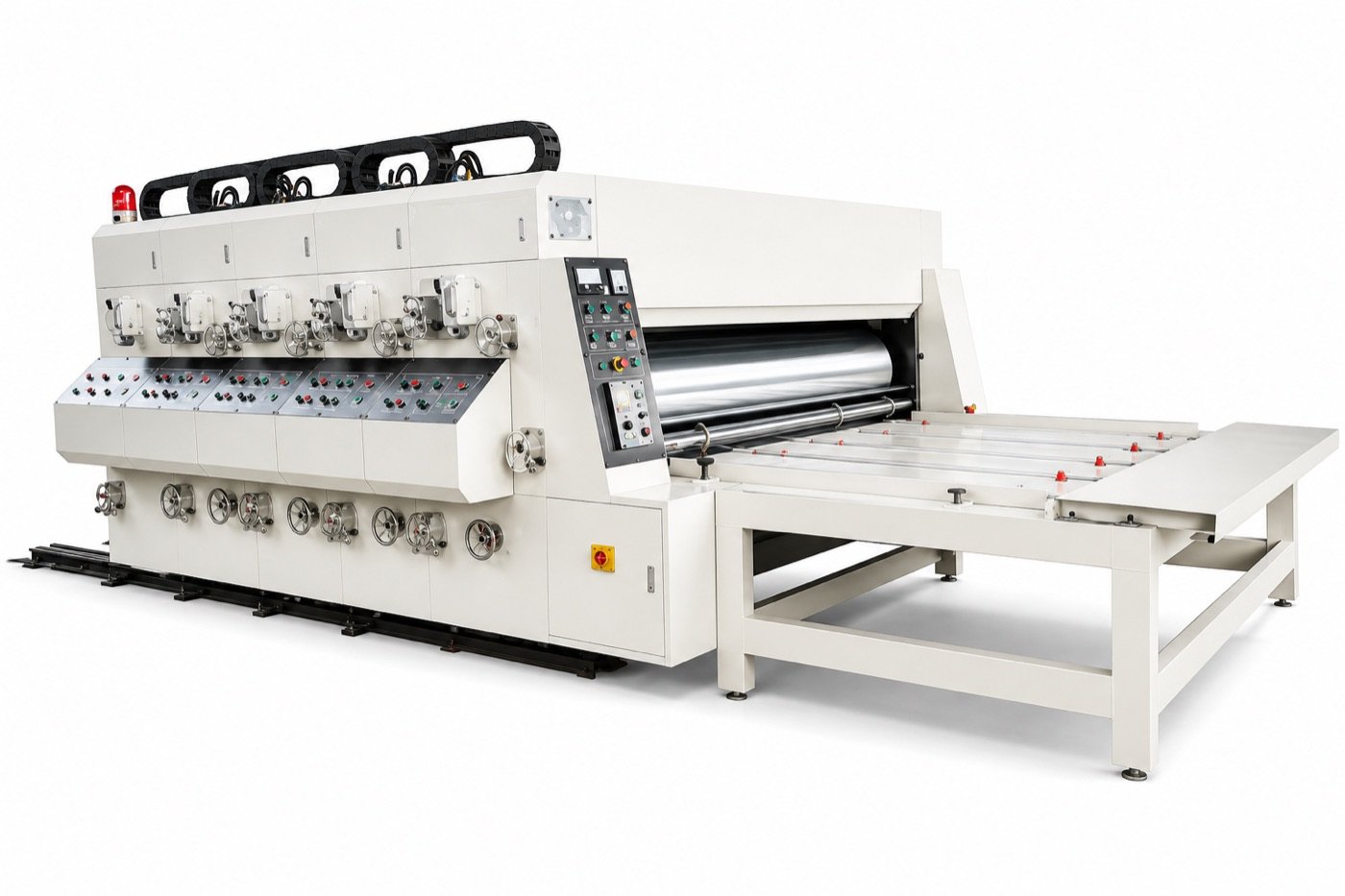

Single Colour Printer Slotter Machine

View specifications
Features
  • 2-, 3-, 4- and 5-colour configurations available
  • Printing, slotting, creasing and die cutting in combined process
  • Large screw and bevel-gear transmission for increased gear strength
  • Cross-sliding paper-feed drive with 360° phase adjustment
  • Suitable for corrugated-board carton production
  • Models: 3350-1600 / 1800 / 2000 / 2200
Request Quote View Details

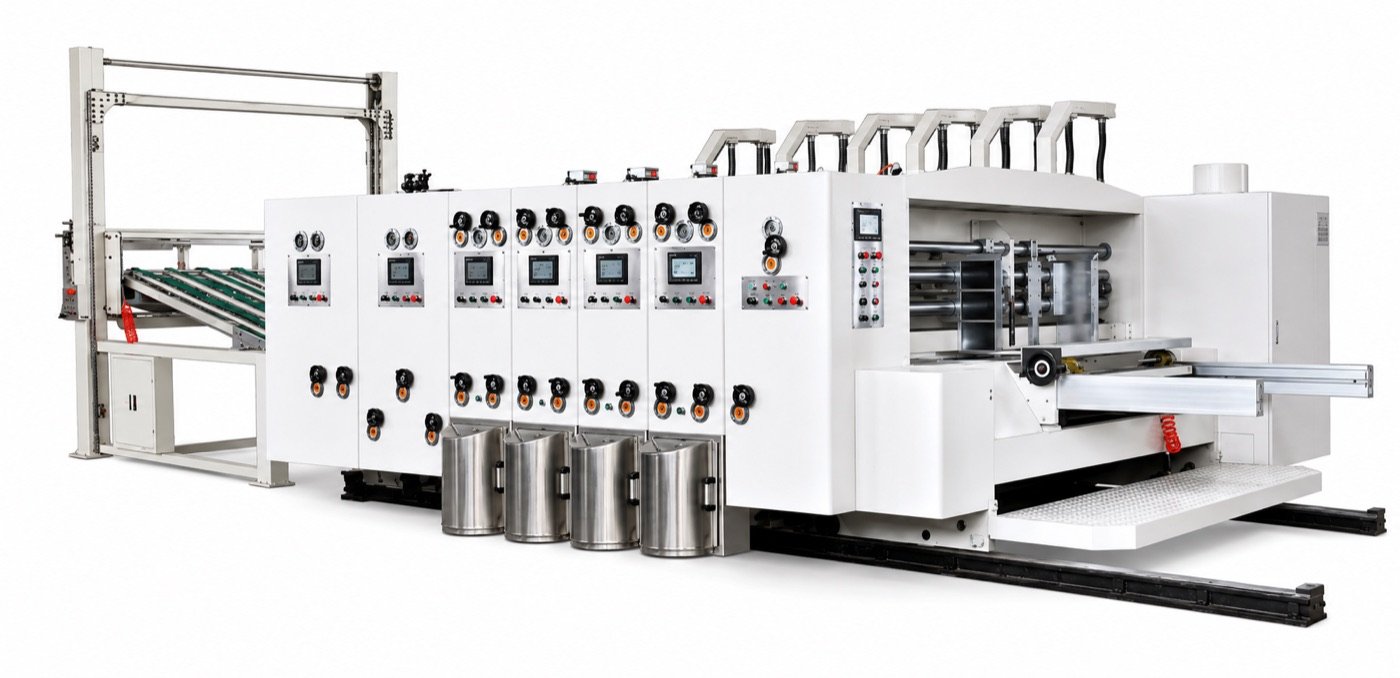

Double Colour / Printer Slotter (Multicolour) Machine

View specifications
Features
  • Seven-color flexographic printing with slotting and rotary die cutting
  • High-speed production with hard-chromium-plated drive rollers
  • High-quality alloy-steel gears with keyed main drive connection
  • Automatic lubricating oil balance
  • Computer touchscreen with feeder control and memory functions
  • Steel or ceramic anilox roller options
  • Optional stacker, feeder and bundler
Request Quote View Details

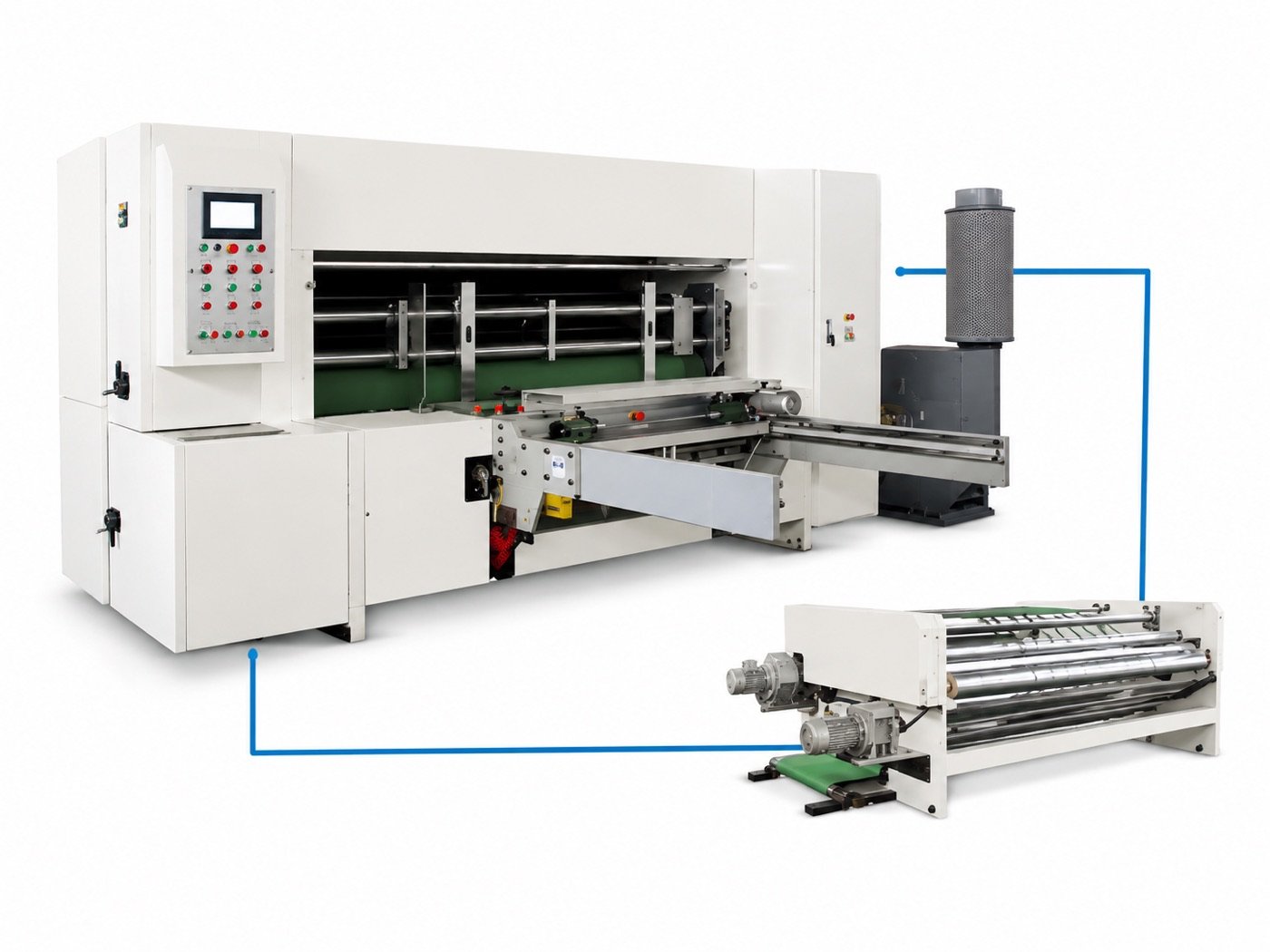

Rotary Die Cutting Machine

View specifications
Features
  • Computer/electronic phase control with 360° phase adjustment
  • Electronically adjustable die-cutting scraper
  • Vacuum paper-feed mechanism
  • Lightweight aluminium back-kick system
  • Electronic left/right and back-baffle adjustment
  • Consecutive or skip feeding with infrared electronic counter
  • Brush dust removal; chain or automatic board feeding available
Request Quote View Details

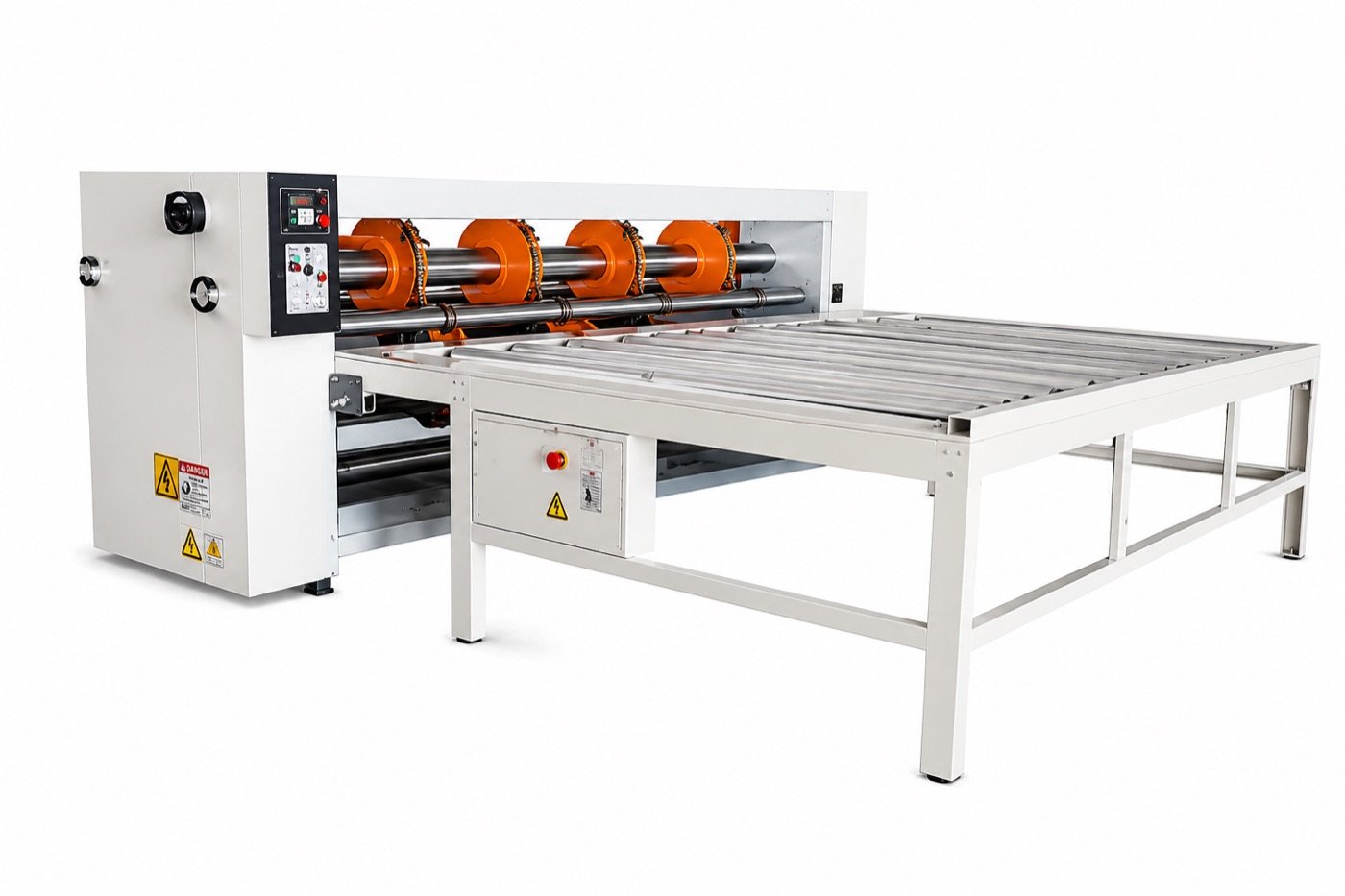

Thin Blade Rotary / Slitting Machine

View specifications
Features
  • Thin-blade cutting with automatic and manual grinding
  • Sharpness maintenance
  • Separate cutting and creasing
  • Reduced tearing during pressing
Technical Specifications
SpecificationModel 2000Model 2500
Paperboard width2000 mm2500 mm
Max. speed141 m/min141 m/min
Paper partitioning44
Minimum separate cutting width200 mm200 mm
Minimum creasing width200 mm200 mm
Knife diameter260 mm260 mm
Knife thickness1 mm1 mm
Power4 kW4 kW
Weight3000 kg3500 kg
Request Quote View Details

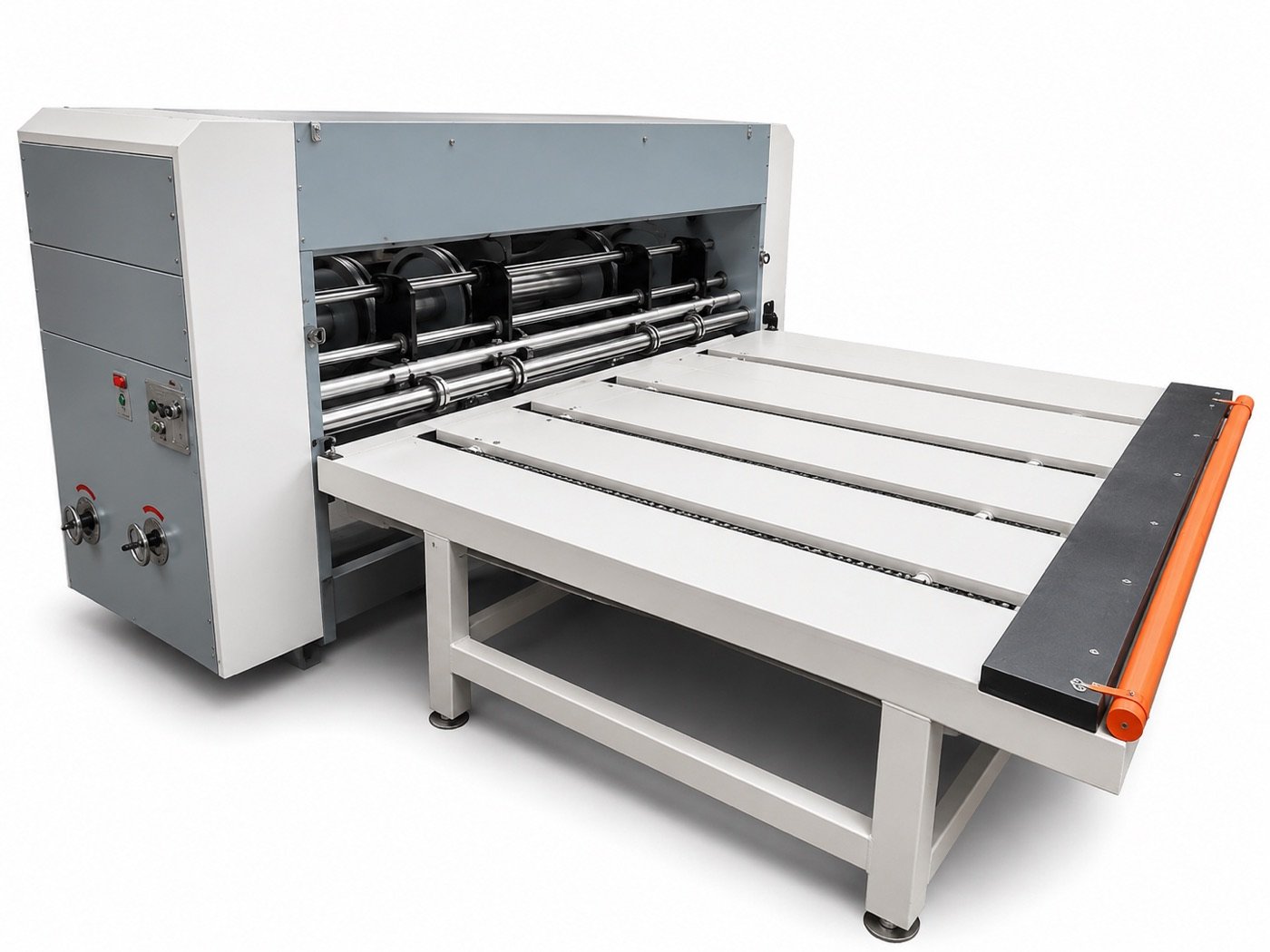

Combined Rotary Slotter (RS-4) Machine

View specifications
Features
  • Partition processing, corner cutting, slotting, creasing and edge cutting
  • Corrugated-board processing
Technical Specifications
ModelPaper Feeding AreaMax. Slot DepthSlot WidthMin. Slot DistanceSpeed
20001470 × 1950 mm350 mm7.0 mm150 mm0–70 sheets/min
22001470 × 2150 mm350 mm7.0 mm150 mm0–70 sheets/min
25001470 × 2450 mm350 mm7.0 mm150 mm0–70 sheets/min
Request Quote View Details

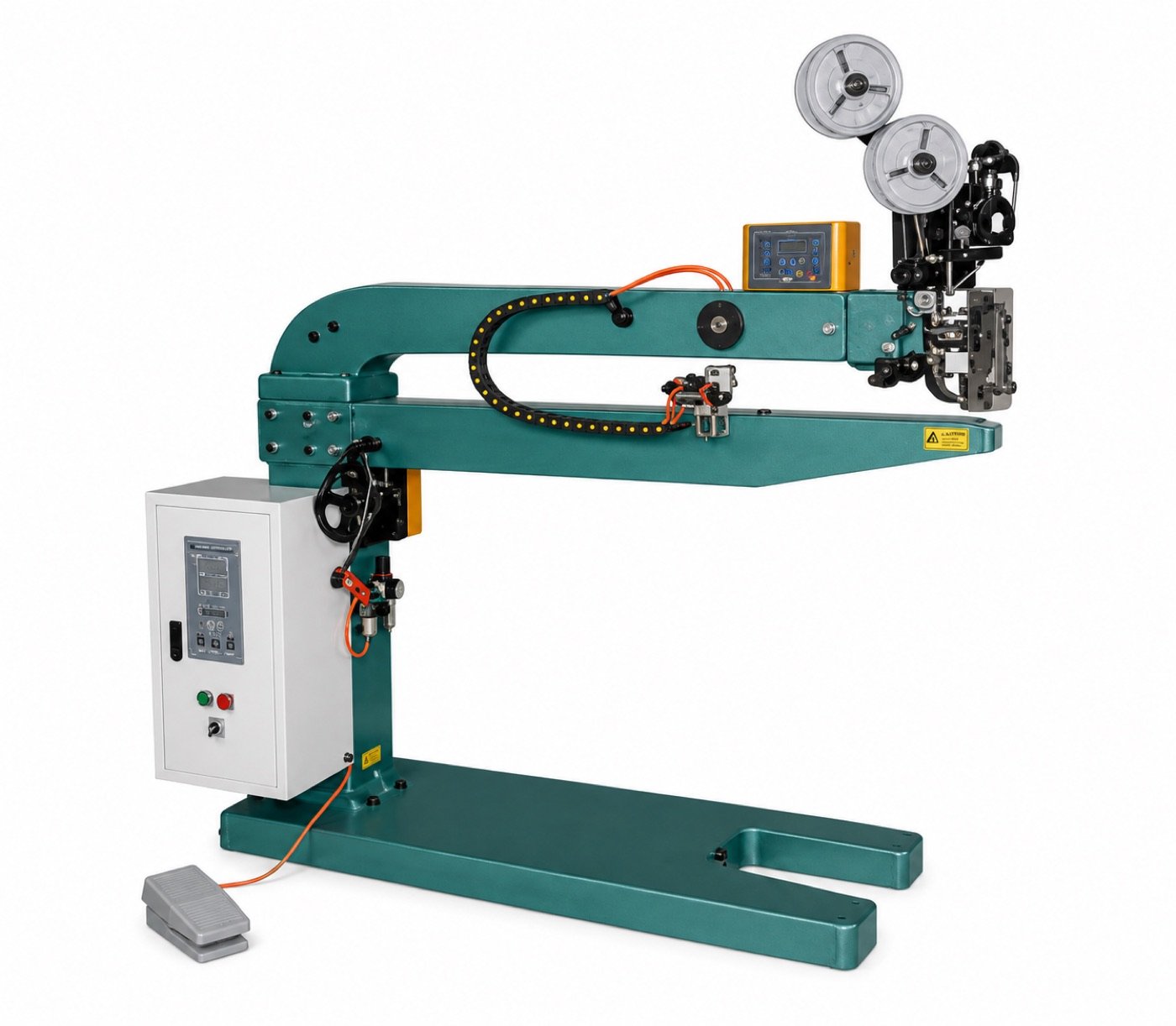

Auto Stitcher

View specifications
Features
  • Stitching speed: 400 stitches/min
  • Stitch count: 3–99; stitch pitch: 35–60 mm
  • Maximum product size: 1500 × 1300 mm
  • Single, double and tie stitching
  • Accurate counting with automatic batch delivery
  • PLC/electrical control; suitable for 3-ply and 5-ply corrugated board
Request Quote View Details

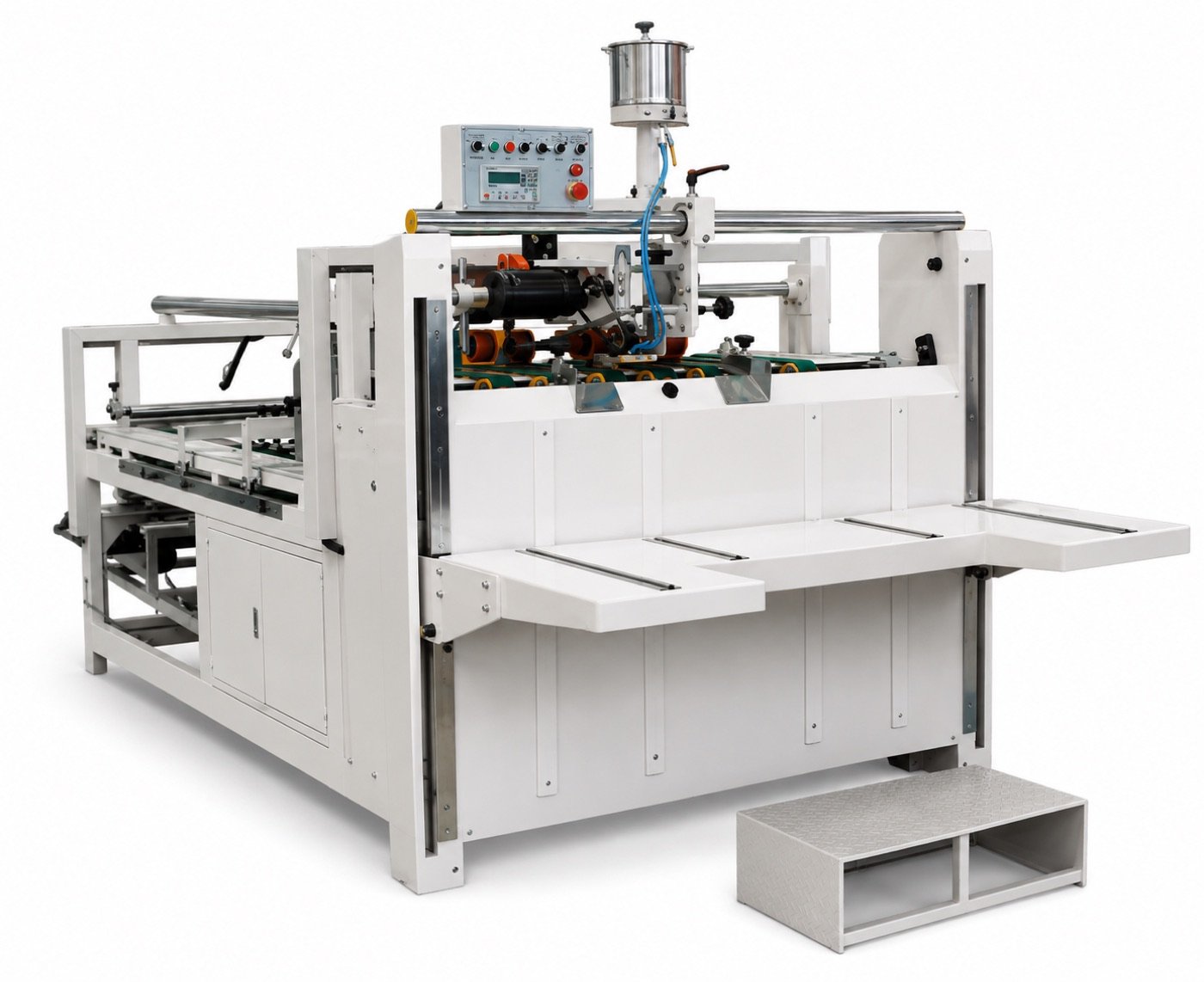

Semi Automatic Folder Glueing Machine

View specifications
Features
  • Main-form section with two small conveyors
  • Up/down work table; forepart feeding and squeeze sections
  • Middle transportation and press section
  • Side-carton delivery with electrical control system
Technical Parameters
Model2800
Maximum size (L+W)×22800 mm
Minimum size (L+W)×2340 mm
Maximum size (W+H)×21515 mm
Minimum size (W+H)×2260 mm
Feeder height1000 mm
Motor power4 kW
Machine speed60 m/min
Machine dimensions5100 × 1860 × 1600 mm
Request Quote View Details

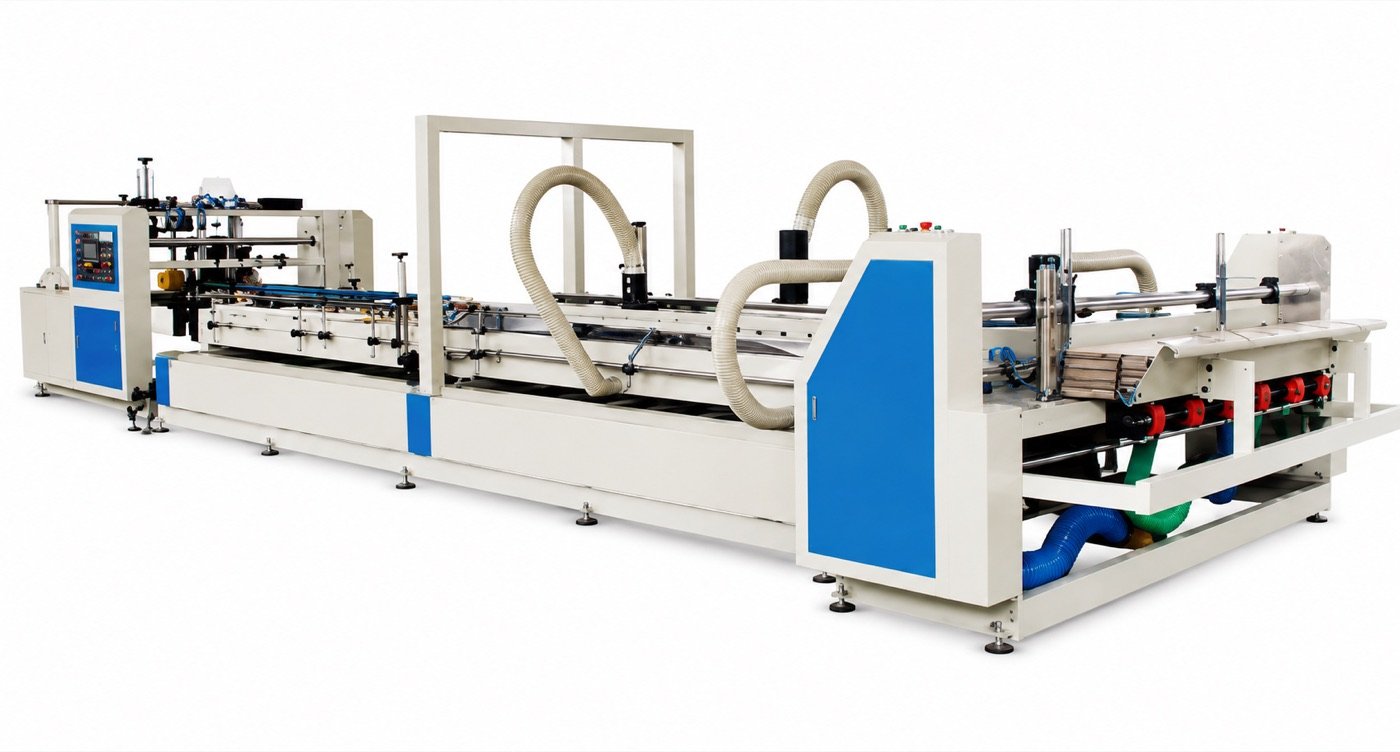

Fully Automatic Folder Glueing Machine

View specifications
Features
  • Main-form section with two small conveyors
  • Up/down work table; forepart feeding and squeeze sections
  • Middle transportation and press section
  • Side-carton delivery with electrical control system
Technical Parameters
Model2800
Maximum size (L+W)×22800 mm
Minimum size (L+W)×2340 mm
Maximum size (W+H)×21515 mm
Minimum size (W+H)×2260 mm
Feeder height1000 mm
Motor power4 kW
Machine speed60 m/min
Machine dimensions5100 × 1860 × 1600 mm
Request Quote View Details

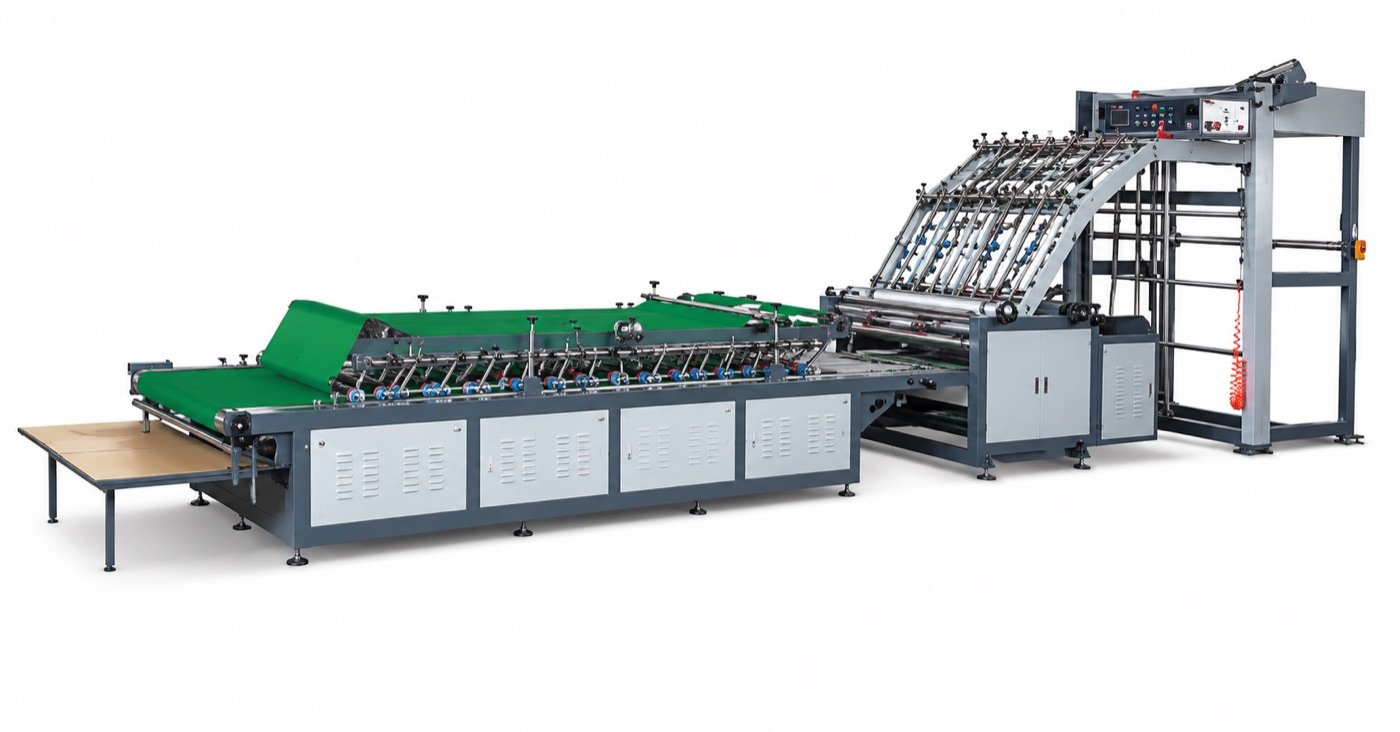

Semi Automatic Flute Laminating Machine

View specifications
Features
  • High-speed continuous operation with PLC and vacuum-suction system
  • Back-registration system with automatic parameter adjustment
  • Large range of paper sizes; accurate lamination
  • Suitable for paper and corrugated board
  • Models: 1300 / 1400 / 1500 / 1600
Technical Parameters
Maximum sizesapprox. 1300 × 1100 mm to 1600 × 1400 mm
Minimum sizeapprox. 360 × 360 mm
Economic speed0–80 pcs/min
Precision±1 mm
Powerapprox. 7 kW
Weightapprox. 3–3.5 T
Request Quote View Details

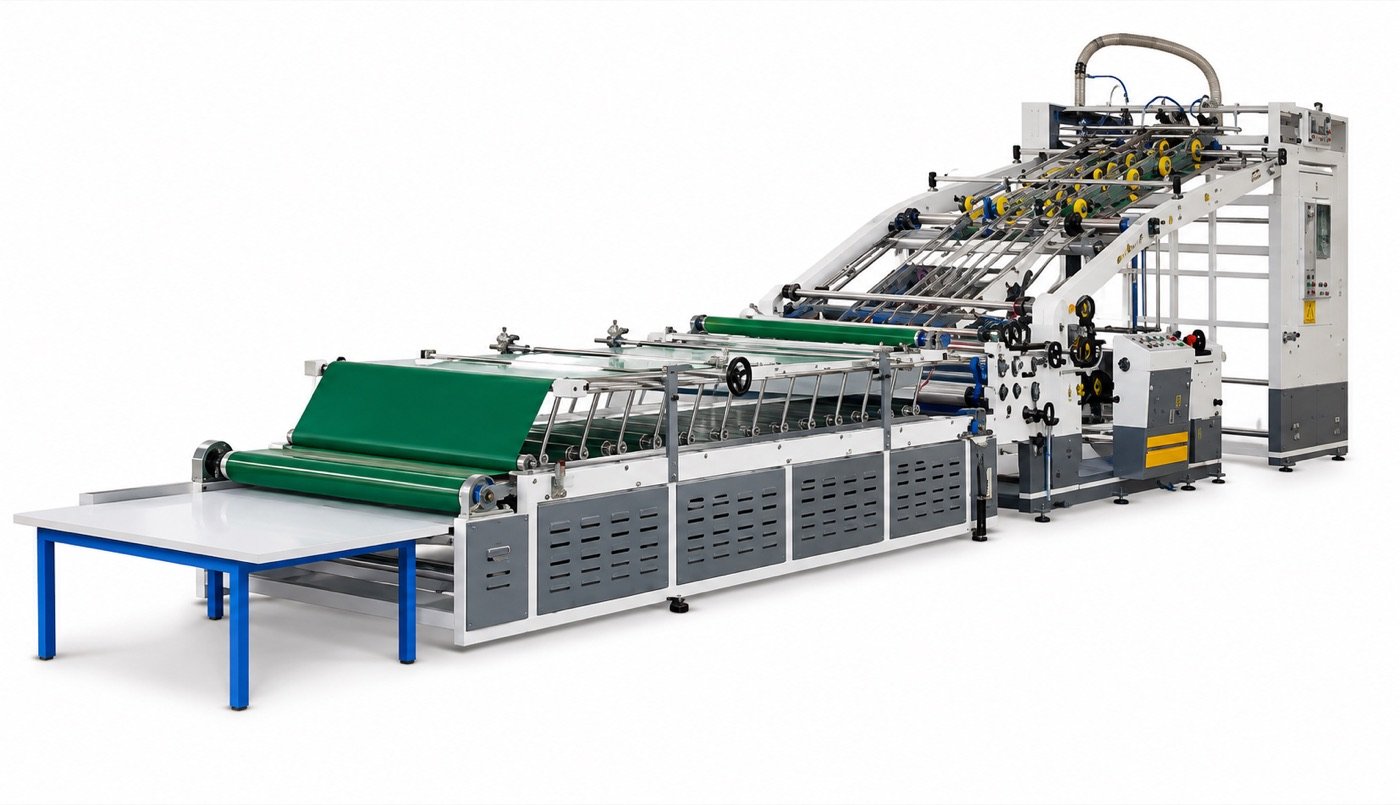

Fully Automatic Flute Laminating Machine

View specifications
Features
  • Automatic top and bottom feeding
  • High-speed operation with high laminating precision
  • Suitable for 200–600 GSM top paper
  • Suitable for A/B/C/D/E/F flutes and 2-ply, 3-ply and 5-ply boards
Technical Specifications
SpecificationModel 1Model 2Model 3
Maximum size1300 × 1100 mm1400 × 1100 mm1600 × 1400 mm
Minimum size350 × 350 mm350 × 350 mm450 × 450 mm
Precision≤ ±1.5 mm≤ ±1.5 mm≤ ±1.5 mm
Speed6000 sheets/hr6000 sheets/hr6000 sheets/hr
Power12 kW12 kW13 kW
Length12.5 m12.5 m15 m
Weight6.8 T7.2 T8.0 T
Request Quote View Details

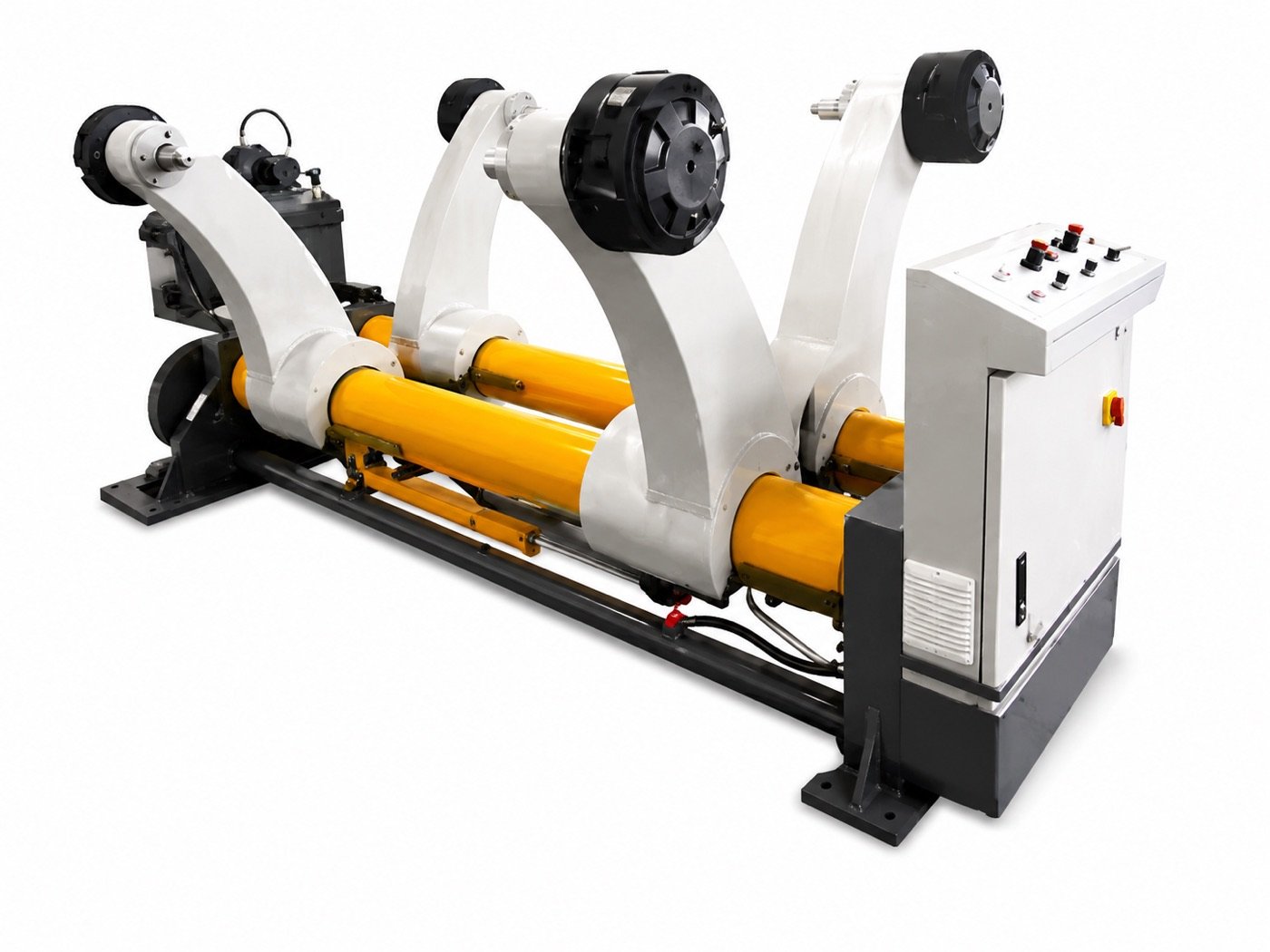

Mill Roll Stand (Electrical & Hydraulic)

View specifications
Features
  • Maximum roll diameter: 1500 mm
  • Hydraulic lifting/lowering and clamping/releasing (hydraulic model)
  • Motorized lifting/clamping on electrical shaftless model
  • Right/left movement with pneumatic web-tension / brake control
  • Width range 1400–1800 mm on electrical shaftless model
  • Taper centre; optional expansion/end-chuck arrangement
Request Quote View Details

3Ply, 5Ply, 7Ply Plant

View specifications
Features
  • Designed for large-volume automatic corrugated paperboard production
  • Automatic centralized control with high-quality reliable operation
  • Heating technology designed to reduce energy consumption
  • Options for different corrugated-board ply configurations
  • Hydraulic and automatic feeding systems
  • Automatic gluing and sheet delivery
  • Computer-controlled cutting and slitting
Main Components
  • Hydraulic Mill Roll Stand
  • RG-900 Triple Preheating Cylinder
  • SF-320C Adsorb Single Facer
  • ZDF Bridge
  • GM-C Heavy Gluing Machine
  • SM-C Double Facer Machine
  • NC Computer Thin Blade Slitter Scorer
  • NC-120 Computer Helical Cross Cutter
  • DMT-120 Paper Sheet Delivery & Stacker
  • ZJZ Automatic Making-Gluer System
  • ZQ Steam System
  • Slitter & Scorer
  • Double Facer Baker
  • Gluing Machine
  • Conveyor Bridge
  • Inner Suction Single Facer
  • Preheating Cylinder
Technical Parameters
Product5-ply 150–1800 corrugated cardboard production line
Design speed150 m/min
Working speed130 m/min
Width1800 mm
Total line lengthapprox. 40–55 m
Total power200 kW
Plant sizeapprox. 75 × 11 × 5 m
Machine sizeapprox. 70 × 4.9 × 4.2 m
Paper width1800 mm
Precision±1 mm
Personnel8–11
Component Quantities
Hydraulic Mill Roll Stand5 sets
RG-900 Triple Preheating Cylinder4 sets
SF-320C Adsorb Single Facer2 sets
ZDF Bridge1 set
RG-S900 Triple Preheating Cylinder1 set
GM-C Heavy Gluing Machine1 set
SM-C Double Facer Machine1 set
NC Computer Thin Blade Slitter Scorer1 set
NC-120 Computer Helical Cross Cutter1 set
DMT-120 Paper Sheet Delivery & Stacker1 set
ZJZ Automatic Making-Gluer System1 set
ZQ Steam System1 set
Request Quote View Details

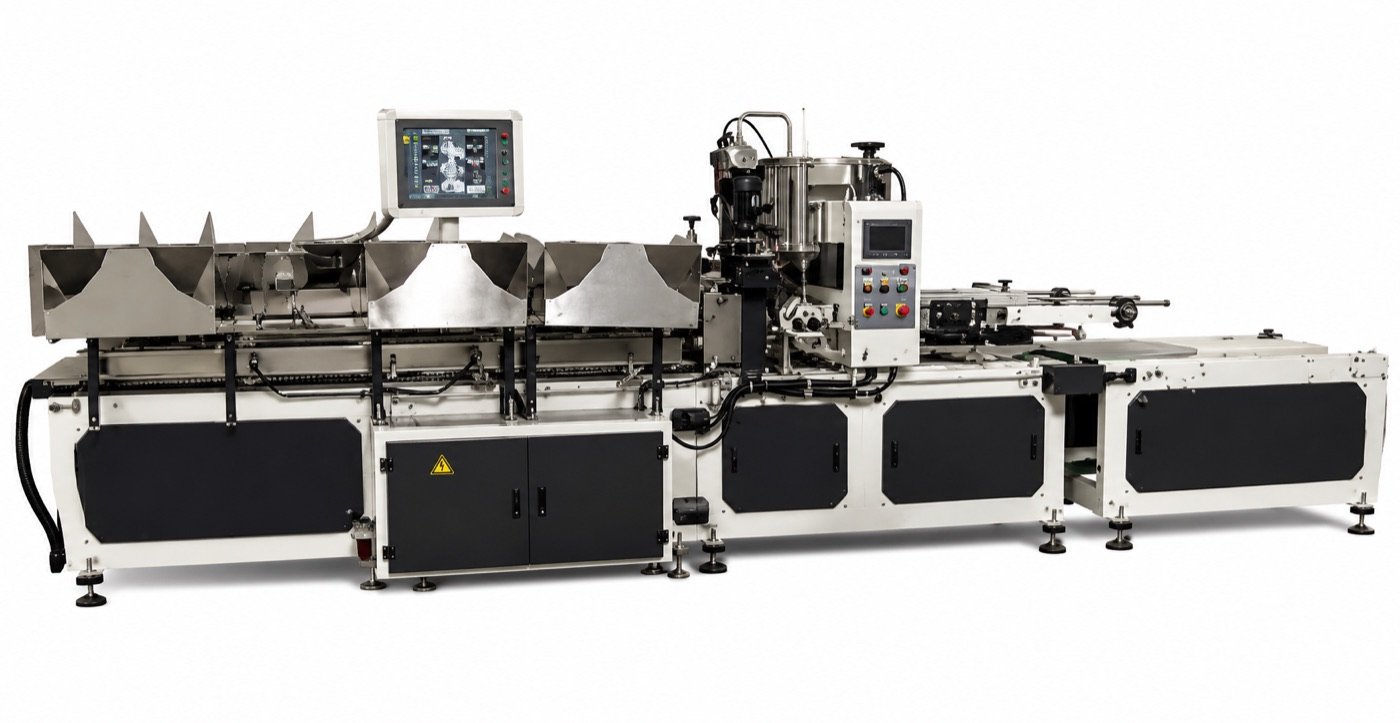

Automatic Partition Filling Machine

View specifications
Features
  • Lengthwise and horizontal sheet insertion
  • Automatic insertion of clapboard/block components
  • Single- and double-position configurations
  • Fault detection with automatic stop on paper jam
  • Designed speed: 40–60 pcs/min
  • Air pressure: 0.6–1.0 MPa; Power: 380 V, 50 Hz, three-phase
Technical Parameters
Lengthways sheet length120–450 mm
Clapboard height80–300 mm
Lengthways clapboard distance20–250 mm
Carton thickness1.5–8 mm
Technical Specifications
ModelDimensionTotal Power
CGJ450-2S5 × 1.8 × 1.8 m8 kW
CGJ450-3S6.2 × 2.0 × 1.8 m8 kW
CGJ450-2D5 × 1.8 × 1.9 m9 kW
CGJ450-3D6.2 × 2.0 × 1.9 m9 kW
Request Quote View Details

Packaging Machine Manufacturer in Amritsar, Punjab

Advanced Printing & Packaging Machineries designs and builds packaging machinery for corrugated box plants — from high-speed double profile corrugation and reel-to-sheet cutters to printer slotters, folder-gluers, flute laminators, and 3 / 5 / 7 ply plants. Every line is engineered for heavy-duty Indian and export duty cycles.

Based in Manawala, Amritsar, we support custom bed sizes, flute profiles, and turnkey plant layouts. Explore related printing machines and genuine accessories, or request a quote on WhatsApp +91 6284 974 477.

Why buy packaging machines from us?

  • 41+ years of in-house manufacturing since 1983
  • Export experience across South Asia, Middle East & Africa
  • Factory inspection & spare-parts support from Amritsar
Enlarged machine photograph
